100% Poylester mesh screen printing mesh DPP61 Yellow/White/Orange/Black boting cloth

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001
Model Number DPP
Minimum Order Quantity 30m
Price 0.75-5.68$/m
Packaging Details Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.210cm*25cm*25cm,185cm*33cm*33cm,55cm*45cm*45cm.
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materil Polyester Colour Yellow / White / Black / Orange
Width 0.1m-3.8m
Leave a Message
Product Description

100% Poylester mesh screen printing mesh DPP61 Yellow/White/Orange/Black boting cloth

Screen printing is predominantly used to print the conductive switch lines and the adhesive layers in the construction of membrane switches. This is because screen printing mesh offers relatively large openings that help to print the viscous conductive, resistive and adhesive materials. In addition, screen printing offers a wide range of wet ink deposit thicknesses from which to create the circuits (from a few microns to several hundreds of microns). The majority of membrane switch graphic overlays are also screen printed.

SPRING PME is the screen printing mesh for use in the industrial environment. It is based on an innovative, high modulus polyester yarn developed by SPRING having extraordinary tensile strength combined with very low and evenly-balanced elongation. SPRING PME sets new standards in the stencil making process. Its quality printing results are hugely impres- sive in the most demanding and innovative printing applications.

Unsurpassed UV-light undercutting protection of yellow mesh

Adhesion and preparation optimized mesh surface

Reproducible mesh relaxation

Good ink and paste release behaviour

Good antistatic behavior thanks to SPRING antistatic treatment

Wide standard range with high availability.

screen printing mesh,polyester mesh,bolting cloth.



SPRING screen mesh impresses with its performance in a wide variety of applications, ranging from graphic screen printing in small and large sizes, such as posters, displays, and signage; printing on plastics such as sporting goods, thermoformed parts, etc.; on the decoration of ceramic, directly or indirectly, and on up to textile printing and other industrial printing tasks.

Ceramics

Electronics

Glass

Graphics

Plastics and Packaging

Textiles

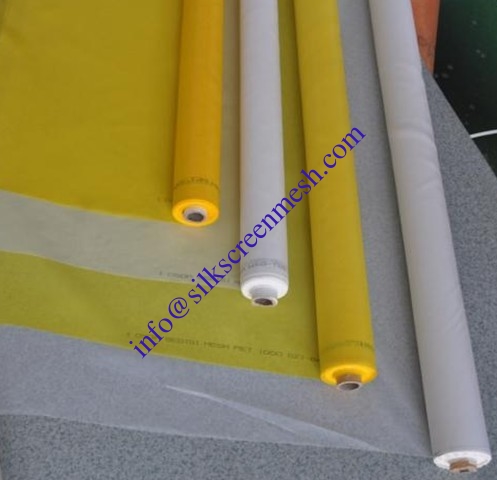

100% Poylester mesh screen printing mesh DPP61 Yellow/White/Orange/Black  boting cloth 0



Type Mesh Count (/cm) Mesh Count (/inch) Thread Diameter(um) Mesh Opening(um) Open Area(%) Thickness (um)
DPP 7/350 7 18 350 1079 57 640
DPP 8/300 8 20 300 950 58 550
DPP 10/250 10 25 250 750 56 445
DPP 12/250 12 30 250 583 49 450
DPP 16/200 16 40 200 425 46 400
DPP 20/100 20 50 100 400 64 200
DPP 20/150 20 50 150 350 49 260
DPP 20/180 20 50 180 320 41 338
DPP 24/100 24 60 100 317 58 190
DPP 24/120 24 60 120 297 51 220
DPP 27/70 27 70 70 300 66 125
DPP 32/80 32 80 80 233 55 140
DPP 32/100 32 80 100 213 46 170
DPP 34/100 34 86 100 194 44 170
DPP 36/80 36 90 80 198 51 137
DPP 36/100 36 90 100 178 41 198
DPP 39/55 39 100 55 201 62 95
DPP 39/80 39 100 80 176 47 141
DPP 39/100 39 100 100 156 37 185
DPP 43/80 43 110 80 153 43 132
DPP 47/55 47 120 55 158 55 95
DPP 47/71 47 120 71 142 44 135
DPP 53/55 53 135 55 134 50 95
DPP 53/64 53 135 64 125 44 118
DPP 53/71 53 135 71 118 39 130
DPP 59/55 59 150 55 114 46 88
DPP 59/64 59 150 64 105 39 105
DPP 61/55 61 155 55 109 44 84
DPP 62/64 62 155 64 97 36 97
DPP 64/55 64 163 55 101 42 85
DPP 64/64 64 163 64 92 35 100
DPP 68/55 68 173 55 92 39 85
DPP 68/64 68 173 64 83 32 100
DPP 72/48 72 183 48 91 43 89
DPP 72/55 72 183 55 84 36 100
DPP 77/55 77 195 55 75 33 86
DPP 80/48 80 200 48 77 38 76
DPP 90/45 90 230 45 66 35 69
DPP 90/48 90 230 48 63 32 76
DPP 100/40 100 250 40 60 36 61
DPP 110/40 110 280 40 51 31 58
DPP 120/31 120 300 31 52 39 53
DPP 120/34 120 300 34 49 35 58
DPP 120/40 120 300 40 43 27 65
DPP 140/31 140 350 31 40 32 49
DPP 140/34 140 350 34 37 27 59
DPP 150/31 150 380 31 36 29 52
DPP 150/34 150 380 34 33 24 60
DPP 165/27 165 420 27 34 31 44
DPP 165/31 165 420 31 30 24 53
DPP 180/27 180 460 27 29 26 42
DPP 200/27 200 500 27 23 21 45
Remark: These are theoretical data for reference only.
Mesh Opening & Open Area only slight error according to actual data.
